Anigma Twin Trim

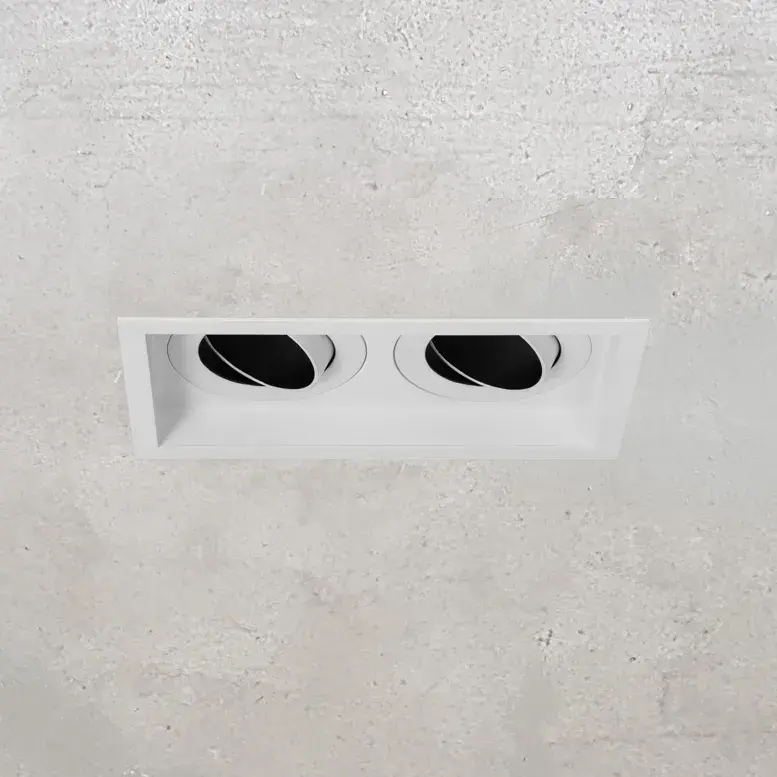

The Anigma Twin Trim is a rectangular trim recessed down-light that is both stylish and functional. With adjustable 30° tilt and 350° rotation, it's easy to highlight any feature or object you choose. This versatile light is dimmable and is available in both IP20 and IP44 ratings for safe use in indoor and protected outdoor areas. With compact dimensions and highest color rendering, it's perfect for any space. The included remote dimming driver make changing the lighting intensity a breeze.

Downloads

Download Data sheet PDF

Technical Information

Construction Die-cast aluminium

Colour

(RAL finish)

 RAL on request, WHITE -11
Light source

11w LED (860 lms nom.) 250 mA 44v, 9w LED (750 lms) 200mA 45v, GU10 6.5w LED (560 las nom.) 240v, MR16 9w LED (590 lms) 12v
Colour temp. 2700K CRI92, 3000K CRI92, 4000K CRI92, Dim to Warm version available
Macadam 3
Beam angle 18 deg, 24 deg, 40 deg, 60 deg
Controls Mains dim, DALI, Casambi (blue-tooth control of each fixture), 0-10V
Dimensions (mm) 129 × 167
Cut out Dimension (mm) 155 x 82

Optional

accessories

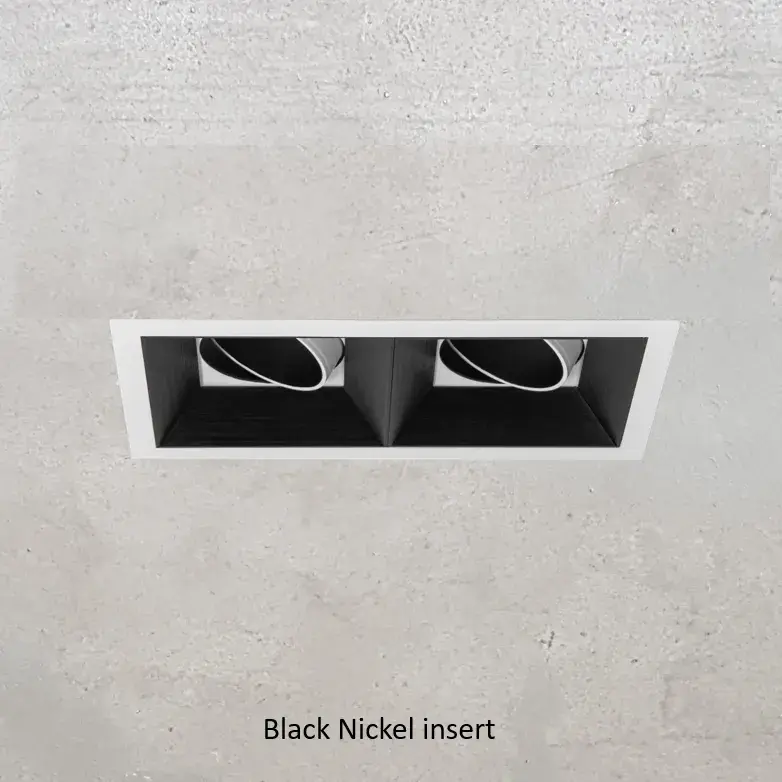

 CONVEX insert Brass, CONVEX insert Black nickel, Convex insert Bronze, Honeycomb, IP44 glass
Special Notes Fire-rated available on request, Remote 3-hour emergency pack available on request.
