Anigma Twin Trimless

The Anigma Twin Trimless is a rectangular trimless recessed down-light that is both stylish and functional. With adjustable 30° tilt and 350° rotation, it's easy to highlight any feature or object you choose. This versatile light is dimmable and is available in both IP20 and IP44 ratings for safe use in indoor and protected outdoor areas. With compact dimensions and highest color rendering, it's perfect for any space. The included remote dimming driver make changing the lighting intensity a breeze.

Downloads

Download Data sheet PDF

Technical Information

Construction Die-cast aluminium

Colour

(RAL finish)

 RAL on request, WHITE -11
Light source

(Please contact us for alternative sources), 11w LED (975 lms) 250 mA 44v, 9w LED (750 lms) 200 mA 45v, GU10 9w LED LED (621 lms) 240v, MR16 9w LED (590 lms) 12v

Colour

temp.

 2700K CRI92, 3000K CRI92, 4000K CRI92,
Macadam 3

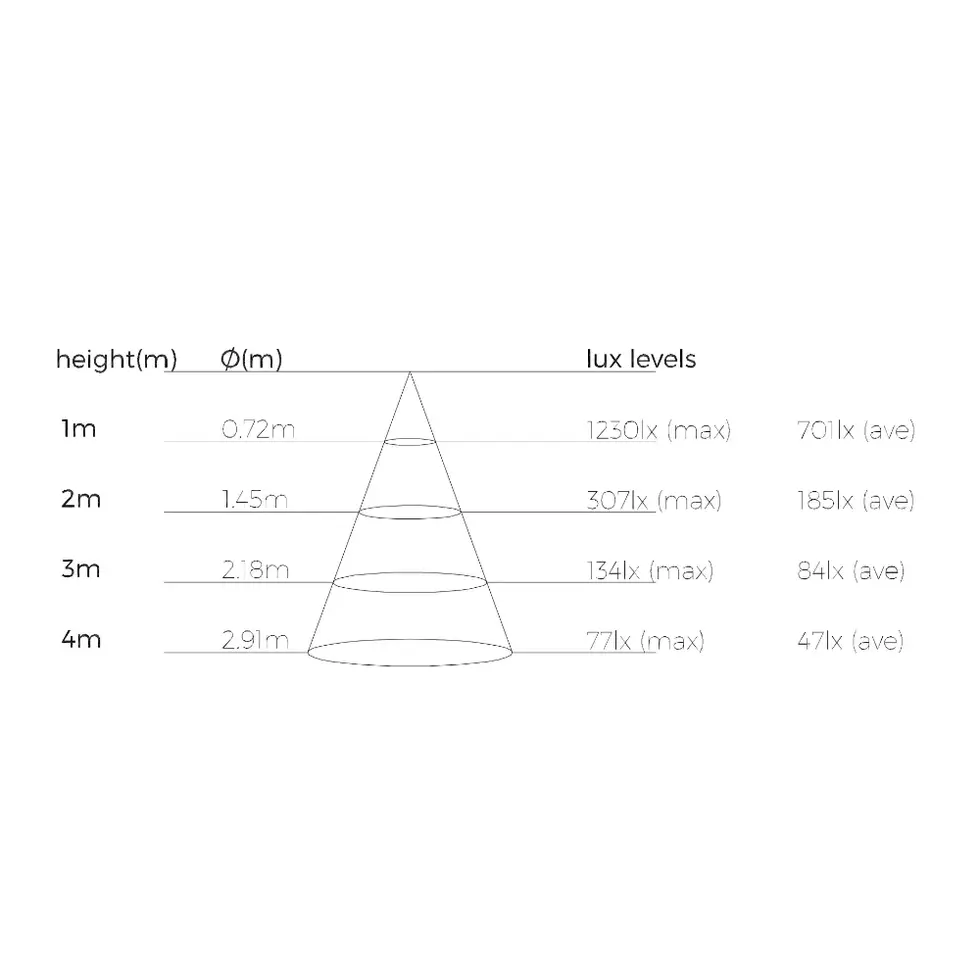

Beam angle 30 deg, 40 deg
Controls Mains dim, DALI, Casambi (blue-tooth control of each fixture), 0-10V

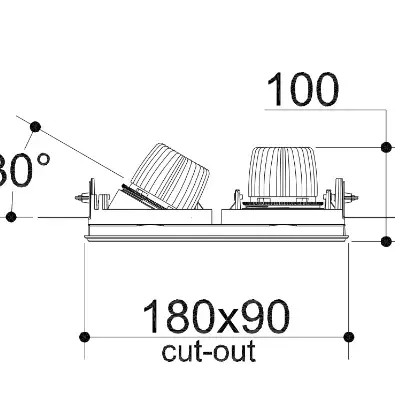

Dimensions (mm) 100 × 179
Cut out Dimension (mm) 175 x 85

Optional

accessories

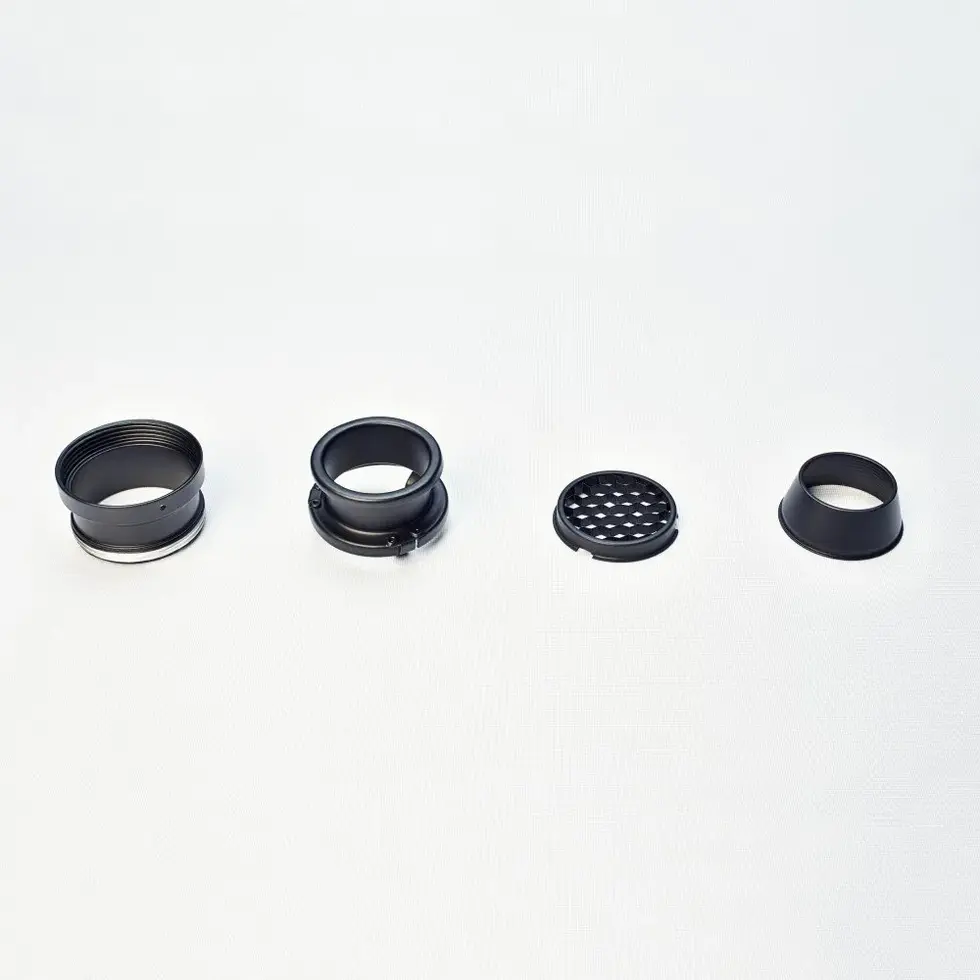

 CONVEX insert Brass, CONVEX insert Black nickel, Convex insert Bronze, Honeycomb, IP44 glass

Special

Notes

 Frame needed for first fix, Remote 3-hour emergency pack available on request.
