Mini Flase

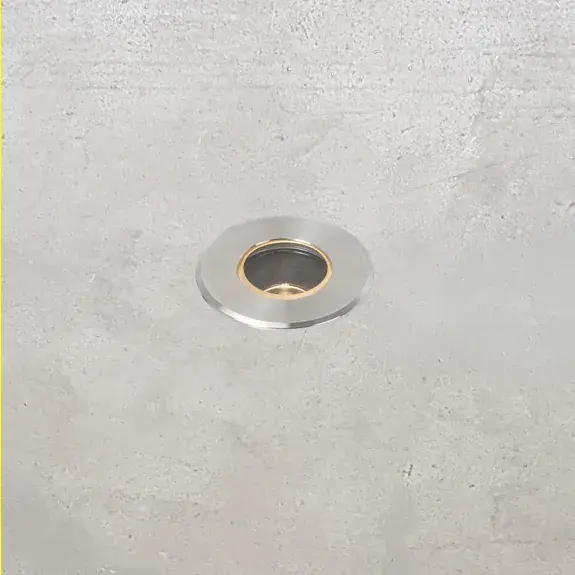

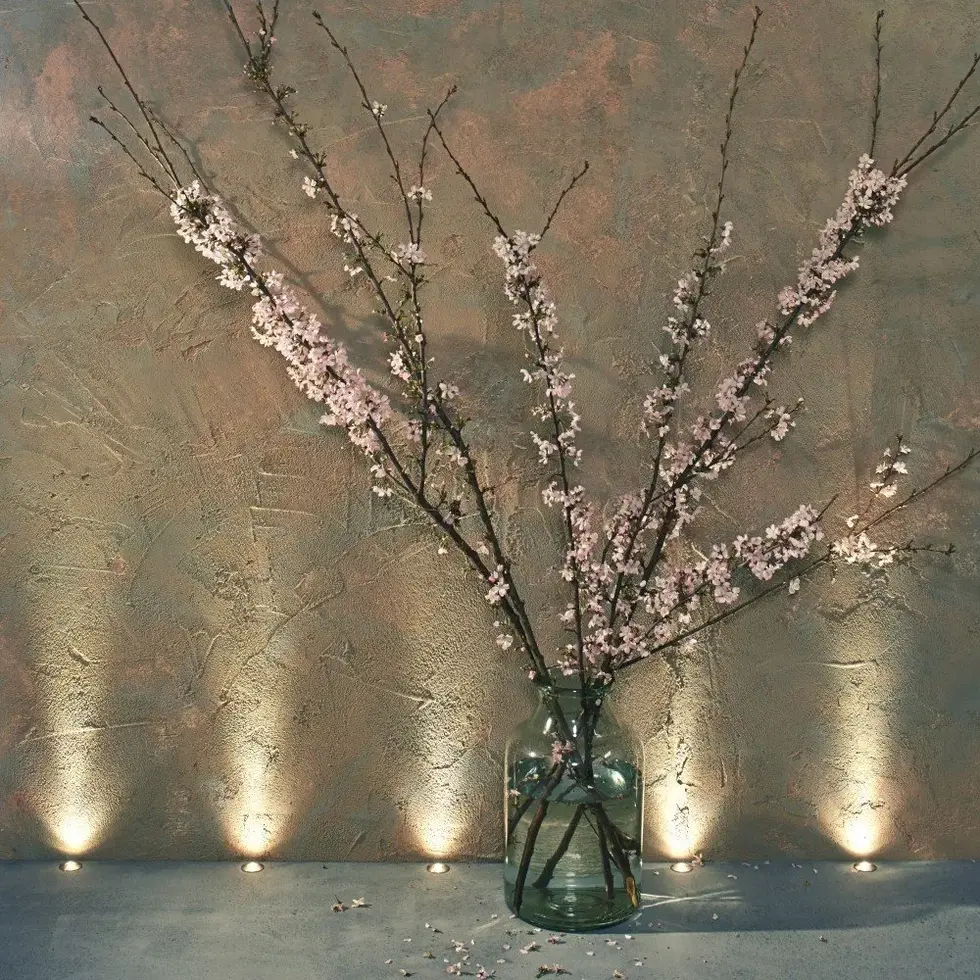

Mini Flase is an in-ground uplight that comes with an optional anti-glare shield. It's dimmable and has an IP67 rating, making it perfect for step washing and niches. With its compact size and medium or narrow beam, it's a discreet yet powerful lighting solution.
Downloads
Technical information
| Construction | Die-cast aluminium, Stainless steel 316S (marine grade) |
| Colour (RAL finish) |
Any custom RAL, Brushed stainless steel |
| Light source |
3W LED (180 lms) 700mA 4v, 3W LED (200 lms) 700mA 4v |
| Colour temp. | 2700K, 3000K CRI 90 |
| Beam angle | 12 Degree, 36 Degree |
| Controls | DALI, Casambi allows dimming control of each fixture, 0-10V, Phase (remote) |
| Optional accessories |
Anti-glare baffle |
| Cut out Dimension (mm) |
33 mm (35mm with sleeve) |
| Special Notes | Custom finishes subject to extra charge, Optional anti-glare ‘half-shield', Remote driver required; wire in series., Supplied with conversion spring for use as niche-light |
